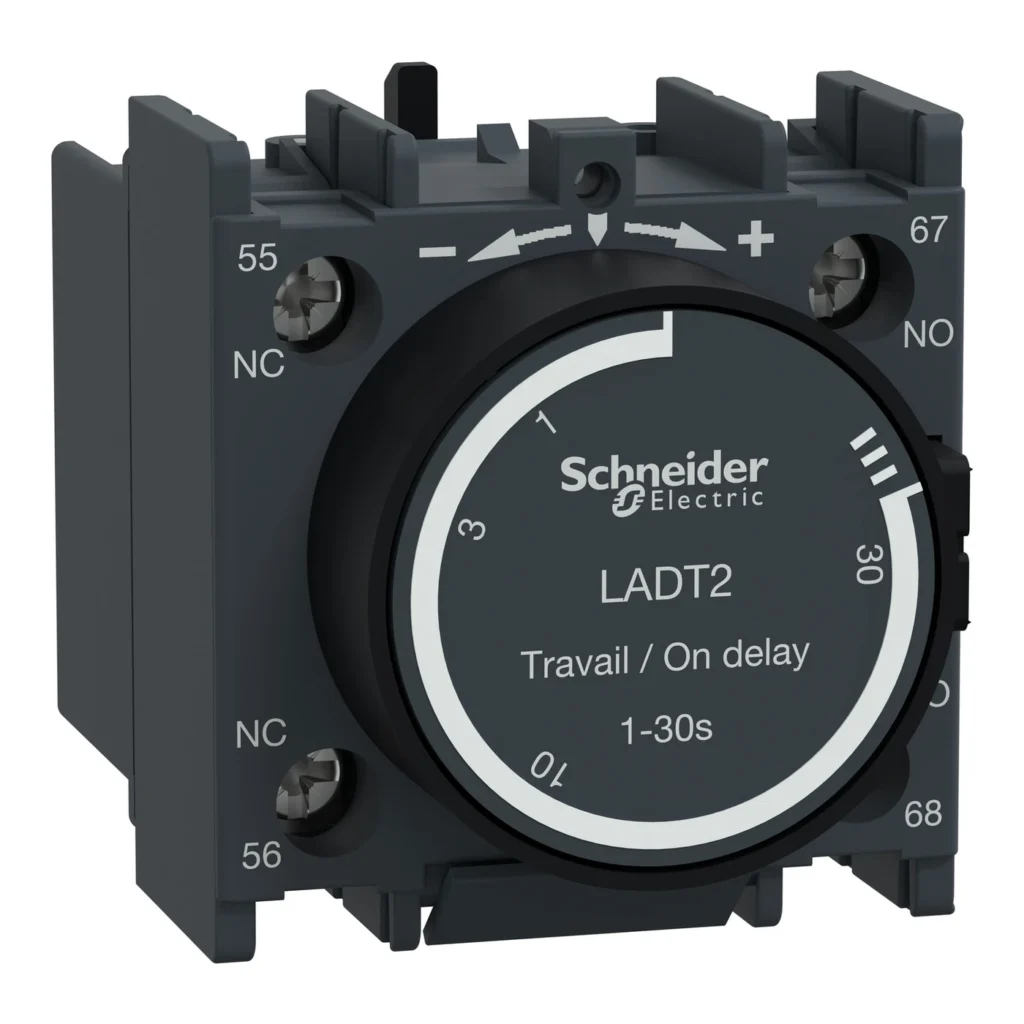

Product image for reference. Check the manufacturer's documentation for exact appearance and dimensions.

LADT2 – Schneider Electric Time delay contact block,TeSys Deca,1NO+1NC,on-delay 1-30s,front

Brand: SCHNEIDER
Model / part no.: LADT2
Category: Contactors
Type: Auxiliary Contacts & Blocks

In stock. Price on request. Our team confirms price and quantity with every quotation.

TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Specifications Source: Schneider Electric product page
Product or component type	Time delay auxiliary contact block
Range compatibility	TeSys Deca CAD TeSys Deca LC1D TeSys F LC1F TeSys F CR1F
Mounting location	Front
Pole contact composition	1 NO + 1 NC
Contacts operation	Time delay
Timer type	On delay
Time delay range	1...30 s
[Ue] rated operational voltage	690 V AC 25...400 Hz
[Ie] rated operational current	6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
[Ui] rated insulation voltage	690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current	10 A (at 60 °C)
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Product certifications	IECEE CB Scheme UL CSA CCC EAC UKCA
Irms rated making capacity	140 A at <= 690 V AC conforming to IEC 60947-5-1 250 A at <= 690 V DC conforming to IEC 60947-5-1
Permissible short-time rating	100 A 60 Â°C 1 s 120 A 60 Â°C 500 ms 140 A 60 Â°C 100 ms
Protection type	GG fuse 10 A
Mechanical durability	5 Mcycles
Minimum switching current	5 mA
Minimum switching voltage	17 V
Non-overlap time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance	> 10 MOhm
Connections - terminals	Screw clamp terminals 1 cable(s) 1â¦2.5 mmÂ²flexible with cable end Screw clamp terminals 1 cable(s) 1â¦2.5 mmÂ²flexible without cable end Screw clamp terminals 2 cable(s) 1â¦2.5 mmÂ²flexible with cable end Screw clamp terminals 2 cable(s) 1â¦2.5 mmÂ²flexible without cable end Screw clamp terminals 1 cable(s) 1â¦2.5 mmÂ²rigid Screw clamp terminals 2 cable(s) 1â¦2.5 mmÂ²rigid Screw clamp terminals
Tightening torque	1.7 N.m - with screwdriver flat Ã 6 mm 1.7 N.m - with screwdriver Philips No 2 1.7 N.m - with screwdriver pozidriv No 2
Height	48 mm
Width	44 mm
Depth	61 mm
Colour	Dark grey
Environmental characteristic	Normal environment
IP degree of protection	IP20 conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068
