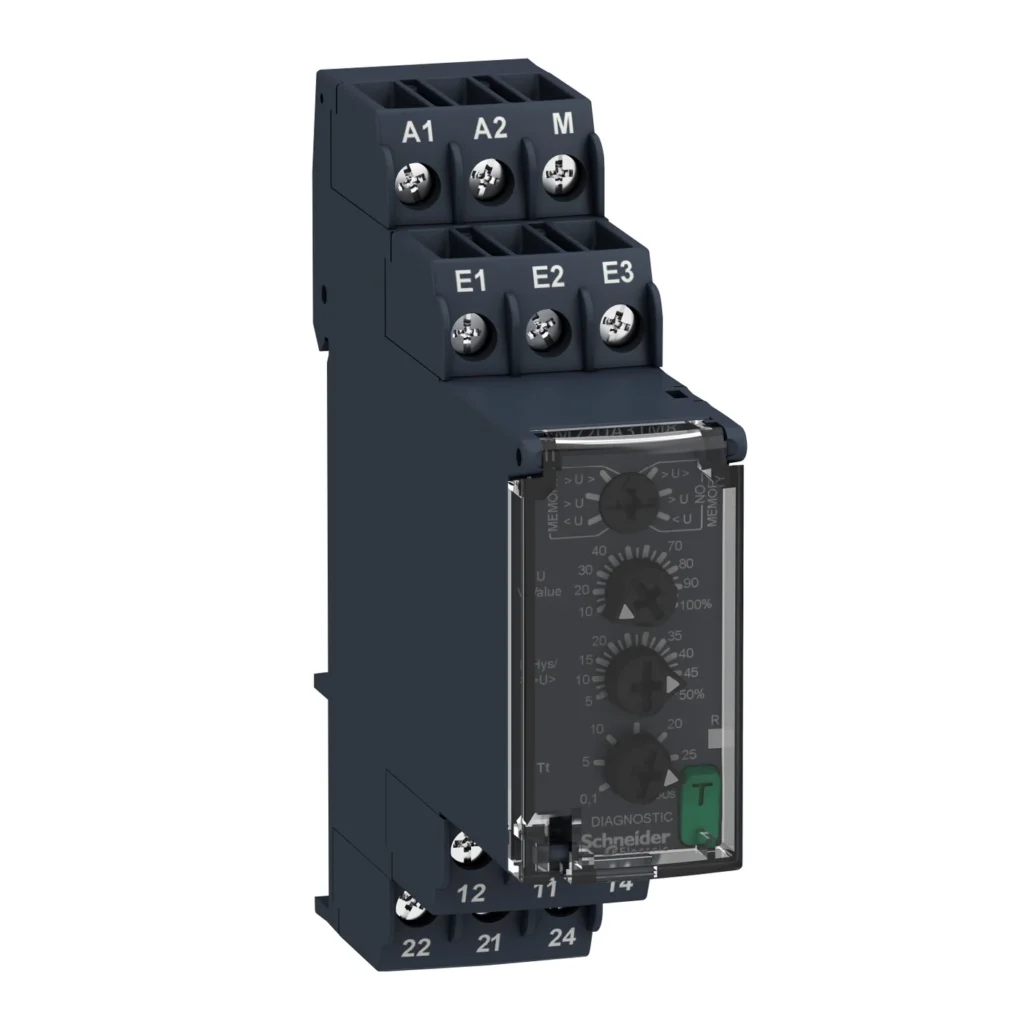

Product image for reference. Check the manufacturer's documentation for exact appearance and dimensions.

SCHNEIDER

RM22UA32MR – Schneider Electric Voltage control relay 1V…100Vac/dc, 2 C/O

Brand: SCHNEIDER
Model / part no.: RM22UA32MR
Category: Switches & Relays
Type: Safety & Monitoring Relays

In stock. Price on request. Our team confirms price and quantity with every quotation.

This Harmony RM22-UA relay allows monitoring of voltage control in single phase networks. This modular multi function single phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

Specifications Source: Schneider Electric product page
Range of product	Harmony Control Relays
Relay type	Voltage control relay
Product or component type	Voltage control relay
Relay name	RM22UA
Relay monitored parameters	Undervoltage and overvoltage in window mode Overvoltage or undervoltage detection
Control type	With test button
Contacts type and composition	2 C/O
Network number of phases	1 phase
Supply circuit type	DC
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz, non self-powered
Supply voltage limits	20.4…264 V AC/DC
Power consumption in VA	3.5 VA AC
Measurement range	1...100 V AC/DC
Maximum measuring cycle	100 ms measurement cycle as true rms value
Hysteresis	3 % fixed of full scale for window mode 5â¦50 % adjustable of threshold setting
Repeat accuracy	+/- 0.5 % for input and measurement circuit +/- 2 % for time delay
Measurement error	< 1 % over the whole range with voltage variation 0.05 %/Â°C with temperature variation
Time delay type	Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Setting accuracy of time delay	10 %
Reset time	1500 ms at maximum voltage
Response time	<= 500 ms
Power on delay	600 ms
Output contacts	2 C/O
Nominal output current	8 A
Maximum switching voltage	250 V AC
Switching capacity in VA	2000 VA
Minimum switching current	10 mA at 5 V DC
Maximum switching current	8 A AC
Electrical durability	100000 cycles
Mechanical durability	10000000 cycles
